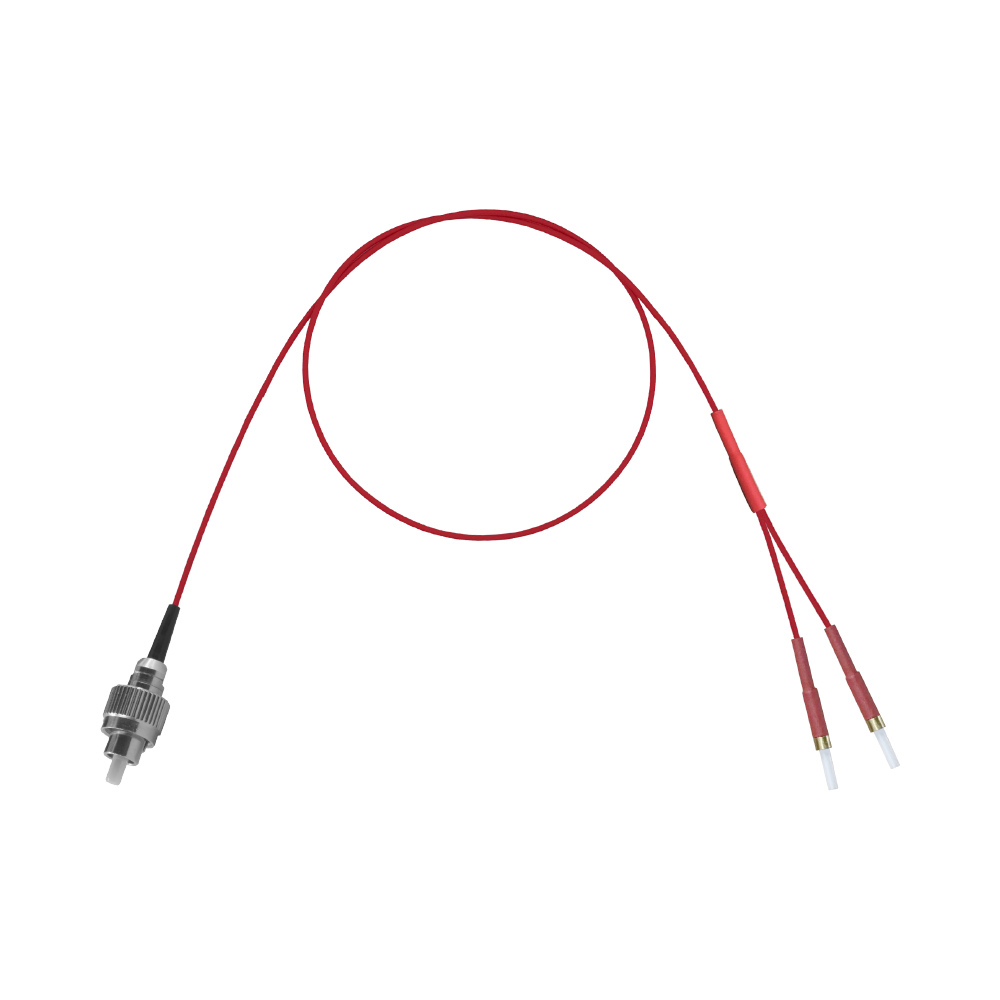

合束光纤(1x2)

  • 光纤型号
  • 光纤长度(m)
  • 接头

50.40 € 50.40 € 50.4 EUR

¥ 360.00

This combination does not exist.

Inper offers a lightweight mono fiber cable with a standard FC or SMA connector on one end for connecting a light source  or fiber photometry system, and  Ø1.25 mm or Ø 2.5 mm ferrule on the other end for connecting fiber optic cannula via a mating sleeve.

Inper provides optogenetic fiber of various standard lengths including 0.5m, 1m, 1.5m, 2.0m, 2.5m, 3.0m, 3.5m 4.0m, 5m. For other custom requirements, please contact support@inper.com

Inper also offers dual or multiple fiber cables

Super miniaturized ferrule tailstock


Inper have optimized the ferrule tailstock to make it smaller.

The out diameter of 1.25 mm ferrule tailstock is only 1.9 mm, and the out diameter of 2.5 mm ferrule tailstock only 2.9 mm, which is more suitable for close-range multi-site recording and stimulation during experiment.

The tailstock is not-magnetic, compatible with fMRI experiments.

Odoo • Text and Image

Mating sleeve and optogenetic fiber compatibility


Inper offers a lightweight optogenetic fiber with a standard FC/PC or SMA connector on one end for connecting an LED or laser source in an optogenetics experiment (see example device diagram), and Ø1.25 mm or Ø2.5 mm ferrule on the other end for connecting Fiber Optic Cannula via a mating sleeve.

Specifications for 合束光纤(1x2)

光纤型号 100/0.22 or 200/0.22 or 200/0.37 or 300/0.37 or 400/0.37 or 200/0.50 or 400/0.50
光纤长度(m) 1 or 1.5 or 2 or 3 or 其它长度
接头 FC - 1.25mm 白色插芯 or FC - 2.5mm 白色插芯 or FC - 1.25mm 黑色插芯 or FC - 2.5mm 黑色插芯
